Vape Synth

Project Description

Presented at Open Hardware Summit 2024 in collaboration with Kari Love, Shuang Cai, and Becky Stern.

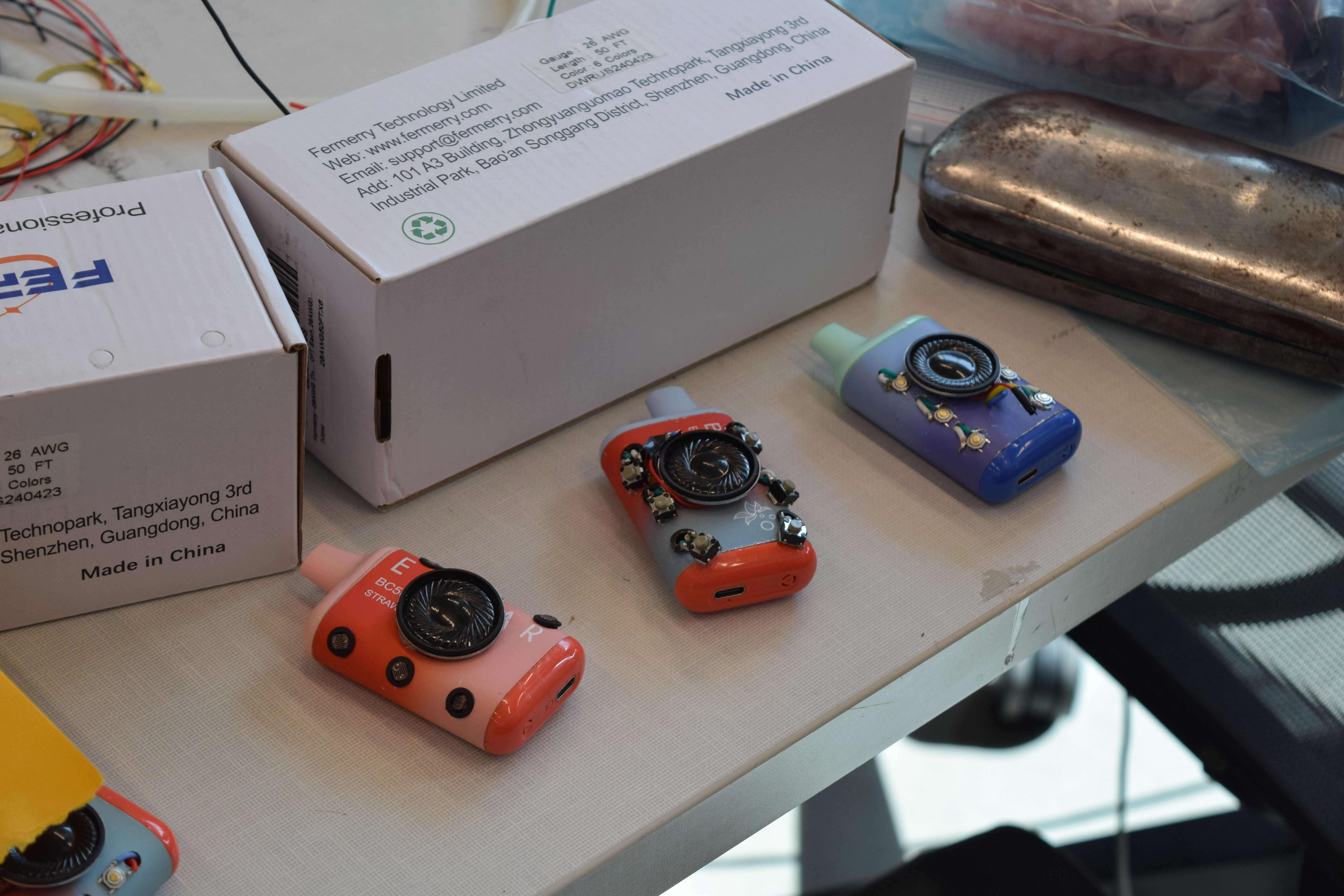

A novel and fun way to repurpose disposable vapes. Vape Synth (or Elf Synth) is part of a larger initiative to reduce e-waste generated by disposable vapes and repurpose the rechargable lithium batteries. The "synth" circuit is a hacked astable 555 noise maker circuit taken from the Forrest Mims Engineer's Mini Workbook "Timer Op Amp and Optoelectronic Circuits and Projects".

Resources

• OHS 2024 Presentation
• Becky Stern's Battery Breakdown Tutorial
• Becky Stern's Youtube Channel
• Forrest Mims Engineer's Mini Workbook "Timer Op Amp and Optoelectronic Circuits and Projects"
• NYC Resistor Blog

Project Details

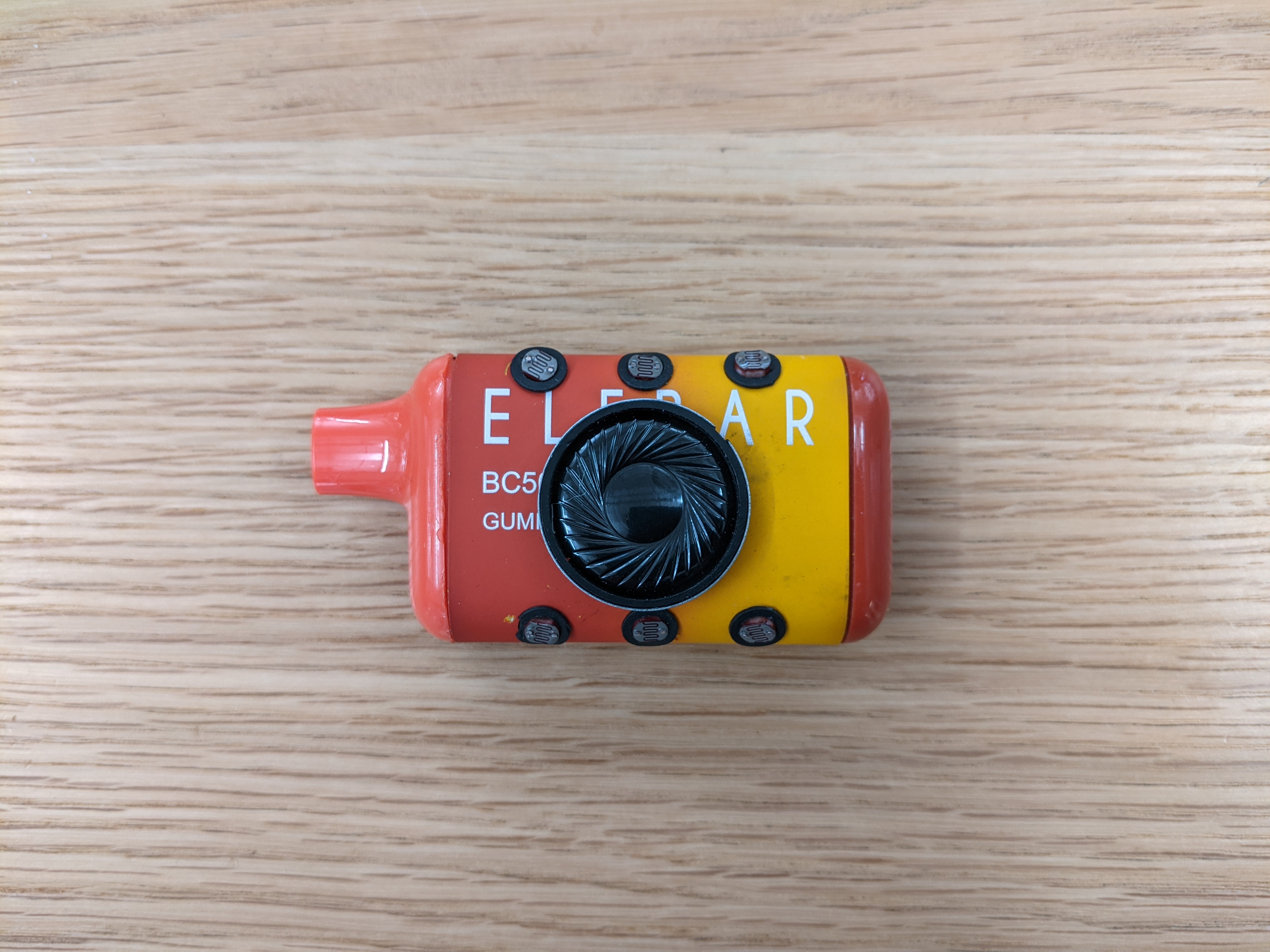

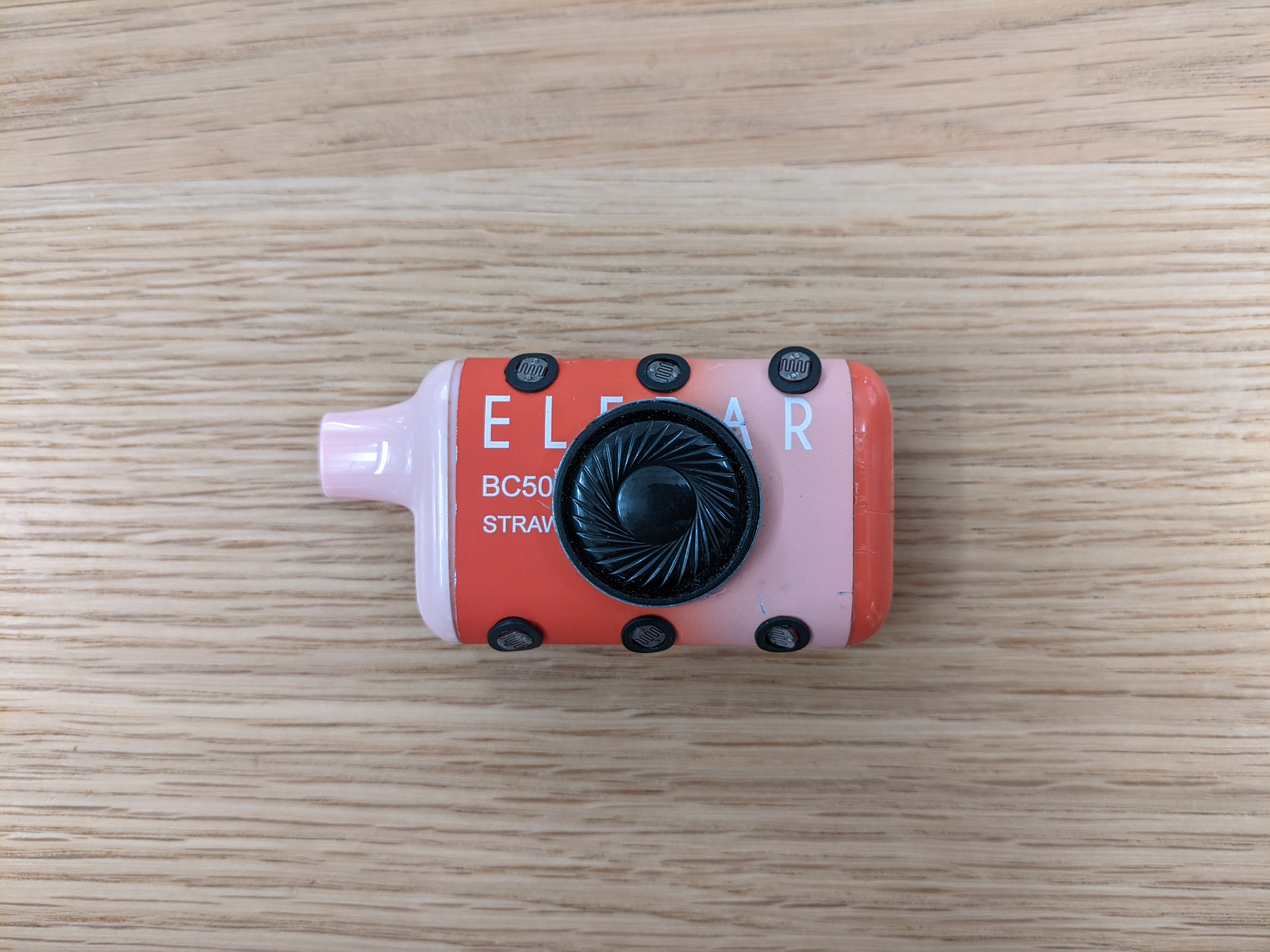

• Disposable Vape (Elfbar BC5000)
• Repurposed Vape Air Pressure Sensor
• Repurposed Vape Charging Circuit
• Analog 555 Circuit
• Photoresistor Sensors
• CNC milling

In Public:

• May 2024, Open Hardware Summit, "Repurposing Disposable Vape Batteries", Presentation
